Outdoor Multi-Training Rig

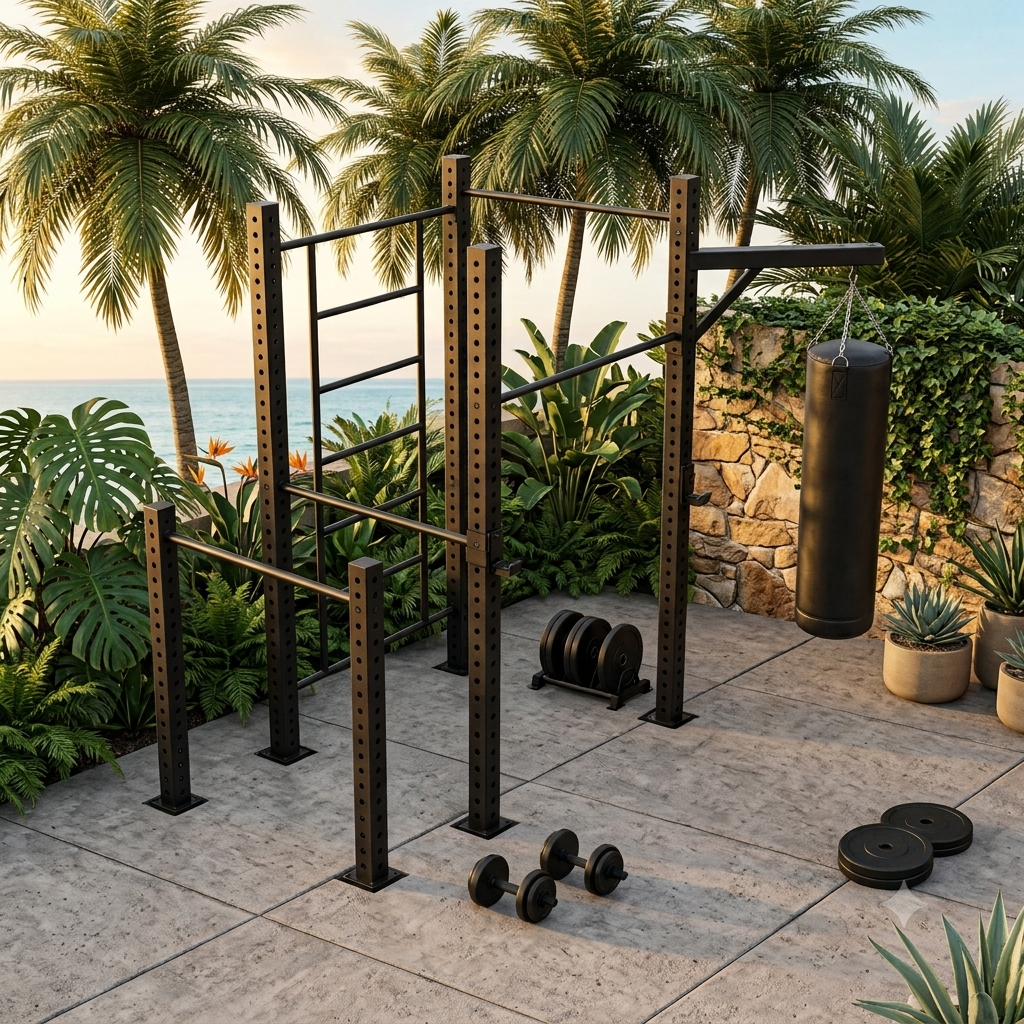

The Outdoor Multi-Training Rig is a six-column steel training structure built for commercial gyms, hotels, schools, sports clubs and public fitness areas. It combines a squat and pull-up station, adjustable J-cup positions, parallel bars, a Swedish wall/climbing ladder, and a dedicated boxing-bag arm in one compact outdoor zone.

Six heavy-duty square steel uprights with perforated faces let you mount J-cups and compatible attachments at multiple heights, so the rig supports pull-ups, squats, presses, dips, climbing, suspension training and boxing without needing separate stations. Multiple bar heights (2,100 mm to 2,600 mm) mean it works for different user abilities, from beginners to advanced athletes training side by side.

Every steel component is hot-dip galvanised and powder coated, built to handle year-round outdoor exposure without corrosion.

Dimensions

• Overall footprint: 2,676 mm W × 2,076 mm D
• Overall height: 2,650 mm
• Full-height uprights: 4 × 2,600 mm H
• Lower uprights: 2 × 1,500 mm H
• Central Swedish wall/ladder width: 1,200 mm
• Parallel-bar module width: 492 mm
• Main bay spacing: 1,308 mm
• Bar heights: 2,100 mm / 2,350 mm / 2,404 mm / 2,450 mm / 2,600 mm
• Boxing-bag arm height: up to 2,600 mm
• Boxing-bag ground clearance: approx. 311 mm
• Recommended installation area: 6,126 mm × 6,176 mm
• Finish: hot-dip galvanised, powder coated

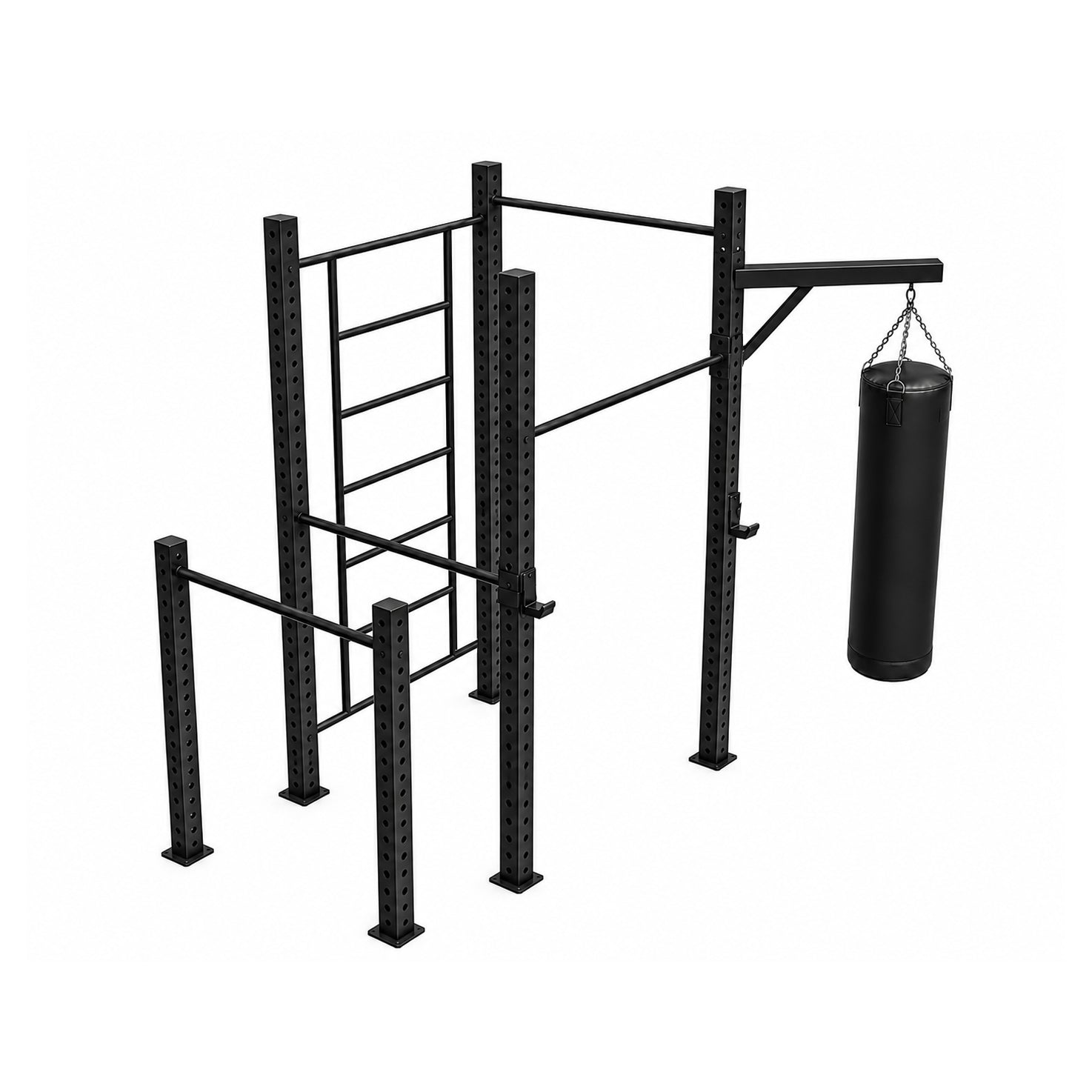

Main Components

• Four full-height square uprights for pull-ups, rack work and structural support.
• Two lower uprights forming the parallel-bar and low training area.
• Adjustable J-cup mounting positions for squats, bench press and barbell exercises.
• Swedish wall / climbing ladder section within the 1,200 mm central bay.
• Parallel bars for dips, L-sits and calisthenics training.
• Multiple pull-up bar heights for users of different abilities.
• Heavy boxing-bag arm with suspended bag position.
• Outdoor-grade galvanised and powder-coated steel finish for weather resistance.
